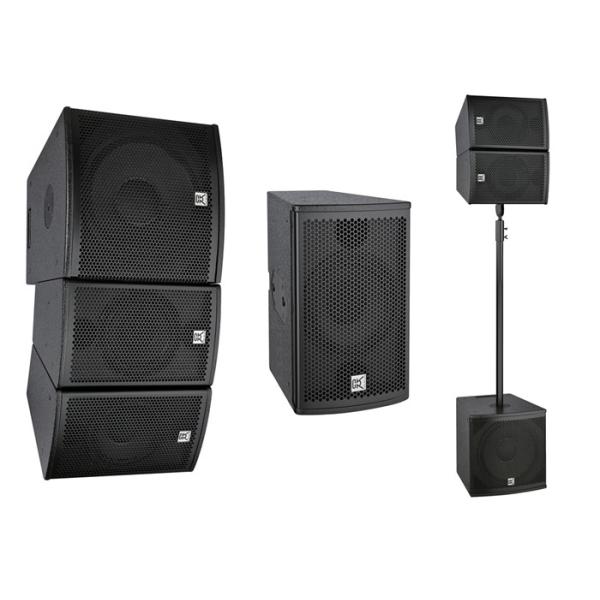

Surround Sound System Mini Hi-Fi Audio Speaker For Conference Room
this speaker is design for conference,bars, church,karaoke..with black and white color as client choice.
DESCRIPTION and APPLICATION

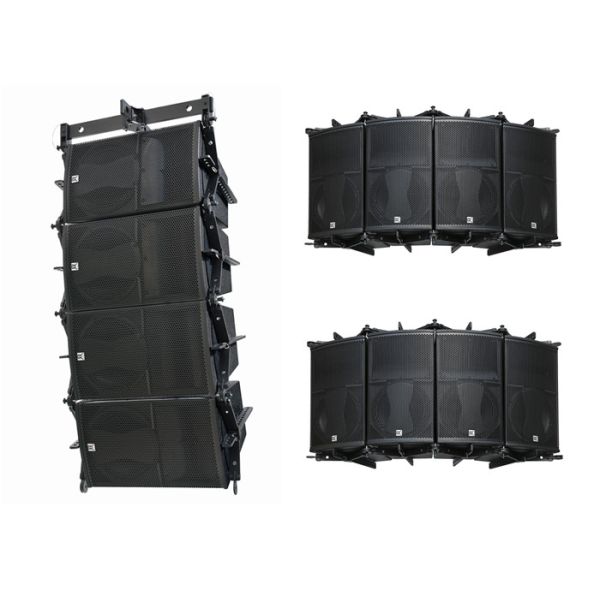

CV-8.0 is a coxial array system which is made of a 8＂woofer, a 1.4＂titanium neodymium compression driver. The CV-8.0 will integrates seamlessly with CV-112B array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. CV-8.0 is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.
CV-112B is a dedicated high performance sub-bass system designed to augment the low frequency output of CV-8.0. CV-112B is a sub-bass enclosure which must be flown with CV-6.5. So its physical dimensions are identical to the CV-8.0 and it is equipped with the same proprietary rigging system. It features with a 12＂woofers with magnet structure and suspensions engineered for maximum linear excursion.
| Model | CV-8.0 & CV-112B |
| Type | Array system
Array sub-bass system(CV-112B) |
| Frequency Response | 70Hz-20KHz±3dB
42Hz-600Hz±3dB(CV-112B) |
| Power handling | 250W(RMS)500W(PEAK)
400W(RMS)800W(PEAK)(CV-112B) |
| Sensitivity | 101dB(1W@1M)
106dB(1W@1M)(CV-112B) |
| Max@S.P.L | 121dB(PEAK/1M)
192dB(PEAK/1M)(CV-112B) |
| LF section | 8"(210mm) woofer
50mm(2in)coil
12"(310mm) woofers
100mm(4in)coil(CV-112B) |
| HF section | 1×1.4"neodymium
compression driver with 34mm
titanium diaphragm |
| Nominal impedance | 8 ohm
8 ohm(CV-112B) |
| Output section | 2-channel |
| Dispersion pattern | 90° |
| Finish | Black paint |
| Speaker cables | 1(+)1(-) Built in crossover
1(+)1(-) (CV-112B) |
| Array design | Please refer to the CV-8.0 user
manual before any operation |
| Input connectors | 2×NL4MP speakon |
| Recommend crossover | 90Hz-20KHz
35Hz-90Hz(CV-112B) |
| Dimensions | 245×380×321mm(W×H×D)
384×380×476mm(W×H×D)(CV-112B) |
| Package dimensions | 315×450×390mm/0.06cbm
455×450×545mm/0.11cbm(CV-112B) |
| Enclosure | Plywood |
| Net weight | 9.5kg(CV-8.0) / 21kg (CV-112B) |
| Gross weight | 12kg(CV-8.0) / 24kg (CV-112B) |
